0.2mm Waterproof Anti Corrosion Plain Weave Silicone Coated Fiberglass Fabric
Description of Silicone coated fiberglass fabric:
Yarn type:E-glass
Surface treatment:Silicone coated
Coating side:1 or 2
Woven type:Plain/satin/twill
Alkali content: Alkali free
Standing temperature:-70~260℃
Width:1/1.27/1.55m
Color: Red, Gray, Black, Yellow, Blue, Orange, etc.
Application: Fire/Welding blanket,Hot Insulation Jacket,Marine & Composite Construction
Reinforced material
Technical data sheet of UPSE-8628D80:
| Item No. | UPSE-8628D80 |
| Weave type | Plain |
| Yarn warp/weft | G75 1/0,G75 1/0 |
| Thread Count | 17.3/13 cm |
| Coating | 40g*2 |
| Weight | 290g/m2 | 8.5oz/yd2 |
| Thickness | 0.2mm | 0.008inch |
| High temp. | 260℃ | 500℉ |
| Low temp. | -70℃ | -90℉ |
| Roll width | 1000mm | 39inch |
| Roll length | 50m | 1970inch |
| Color | Red |
| Package | Woven bag/Carton |
| HS Code | 70199090 |
Plain weave: it can be used in electricity insulation materials and reinforced materials in industry,because of inseparable structure, plain and clear lines.
Properties:
1, High strength;Dimensional stability
2, Resistance to UV, IR and HF
3, Chemical corrosion resistant, oil-proofing, waterproofing (washable)
4, Low temperature -70 °C does not deform, not brittle, and can be intact as ever up to high temp.260℃
5, Non-adhesive, not easy to adhere to any substance.
Main Application:
1.Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.
2.Glass fiber cloth is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.
3.Glass fiber cloth is mostly used in hand lay-up process. Glass fiber cloth is mainly used in hull, storage tank, cooling tower, ship, vehicle, tank and so on.
4.Application in filtration: gas filtration and liquid filtration
5.In the transportation industry, buses, yachts, tankers, cars, etc. are used.

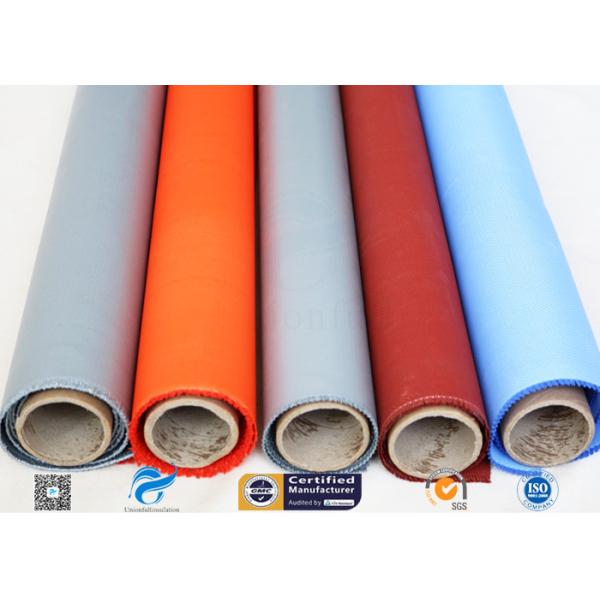

Pictures:
About Unionfull:
Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.
Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
